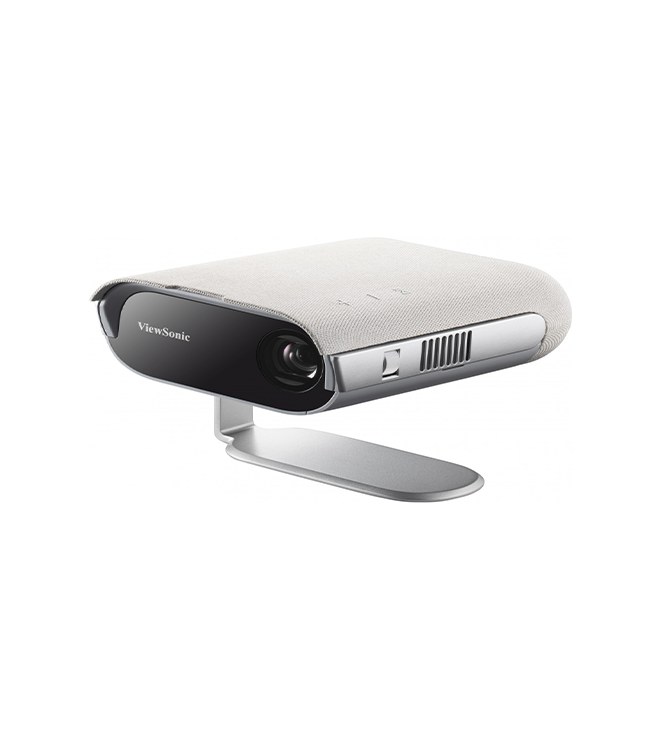

M1 Pro
Smart LED Portable Projector with Harman Kardon® Speakers
1. 3-in-1 smart stand for 360° projection
2. Embedded battery and power bank compatibility
3. 100" large screen in 720p HD resolution
4. Powerful sound by Harman Kardon speakers
5. Smart Wi-Fi screen mirroring & Bluetooth connectivity
360 Degrees of Possibilities
Lens Cap
Work as a cover to protect the lens when being transported.
Auto Power On
Simply swivel the stand to uncover the lens and automatically power on the M1 Pro.
Metal Stand
Solid stand for easy setup and 360 degree of customized projection angle anywhere.
Stylish and Intuitive
All at Once
An iF Design Award winner, the M1 Pro adopts mesh texture, providing a sense of warmth that fuses with the sleek silver metal for a harmonious blend. The surface is embedded with a touch keypad for intuitive operation, achieving both great function and style at once.
So Easy to Carry
The M1 Pro is small enough to fit in the palm of your hand and weighs less than 1kg – making it easy to put in your bag or backpack for big screen anywhere you go.
Built-in Battery for Any Spontaneous Trip
The M1 Pro is a must-have for any serendipitous adventure. The built-in battery provides the on-the-go entertainment as you don’t have to deal with tangled cords or plug the projector into a power source. For even more extended play, power it via a USB-C power bank.*
Endless Fun with 30,000 Hours Light Source Life
The LED light source delivers consistent brightness without lamp replacement for 30,000 hours. Enjoy uninterrupted big fun for over 20 years with 4 hours of projection per day.
Uncompromised Resolution On the Go
The M1 Pro delivers a cinematic experience of 100” large screen in 720p HD resolution at once, from indoors to outdoors, extending and enlarging the fun wherever you go.
Ultimate Spectacle with True-to-life Colors
Vibrant colors powered by ViewSonic’s proprietary Cinema SuperColor+™ Technology with 125% Rec.709, bring you mind-blowing visuals of true cinematic experience.
Mind-blowing Sound by Harman Kardon
Amazed by the room-filling sound delivered by a palm-sized projector. The integrated stereo speakers customized by Harman Kardon provide crisp, clear and powerful audio performance for thrilling movies, latest live concert and exciting games anytime and anywhere.
360-degree Projection for Unlimited Creativity
The M1 Pro is the perfect companion for relaxing weekends. Whether you’re watching your favorite show in bed or having fun with friends at the bar, the setup is a breeze. With the M1 Pro’s 360-degree perfect projection and auto keystone, you can project images onto the ceiling, wall, floor or anywhere you please – with ease.
A Perfect Fit from Any Angle
No need for central positioning - now you have comprehensive H/V keystone and 4 corner adjustment capabilities that deliver perfectly shaped images from above, below, front, or side.
Big Screen, Little Effort
Project 60’’ images from only 1.4 meters away, even a 100” large screen won’t be a problem. Easily get a big screen in your room, rooftop, skate park or anywhere beyond your imagination.
Wireless Screen Mirroring from Your Smart Devices
Create and share amplified enjoyment in an instant. Thanks to the embedded 5GHz fast speed Wi-Fi connectivity, you can cast or screen-mirror content from your devices at hand to the big screen without a single cable.
Bluetooth Enabled for
Additional Audio Options
Enjoy quality sound on your terms. Use the M1 Pro as a Bluetooth speaker to get the party started, or connect your Bluetooth headphones and immerse yourself in your own world of big screen entertainment.
Intuitive Touch Control with Your Phone
Now you can turn your mobile device into an alternative powerful remote control with intuitive touch control, easy typing, and simple annotation. Simply download the ViewSonic vCastSender app on your phone, make sure your phone and the projector are connected to the same Wi-Fi network, and pair them up in the app to get started.
Direct Content
Streaming via USB-C
Project content directly from your phone or other mobile devices via USB-C while simultaneously charging it. Stream videos, FaceTime with friends, or play Nintendo® Switch without a docking station, all through a single cable.
*Devices must support USB Type-C video streaming.
*Apple-authorized Lightning to HDMI adaptor required for iPhone and iPad users.
| Brand | |
|---|---|
| Brands | Viewsonic |
| Input | |
| HDMI | 1(HDMI 1.4/ HDCP 1.4) |
| USB Type C | 2 (Video/5V/2A out *1, DC in /15V/3A *1) |
| Audio-in (Bluetooth) | 1 (BT4.2), 1 (BT4.2) |
| USB Type A | 1, (USB2.0 Reader) |
| Wifi Input | 1 (5Gn) |
| Output | |
| USB Type A (Power) | 1 (USB2.0 - 5V/1.5A, |
| Audio out (3.5mm) | 1 |
| Audio-out (Bluetooth) | 1 (BT4.2) |
| Speaker | 3W Cube x2 |
| Specification | |
| Projection System | 0.3" 720p |
| Native Resolution | 1280x720 |
| Brightness | 600 (LED Lumens) |
| Contrast Ratio | 120000:1 |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Others | |
| Power Supply Voltage | Power adaptor: Input: 100~240V Output: 19VDC / 3.42A, Battery: 12000mAh(4000mAh 3.7Vx3) (1.4hrs@Normal, 2hrs@Eco) |
| Dimensions (WxDxH) with Adjustment Foot | 182x140x62mm |
| OSD Language | English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages |
