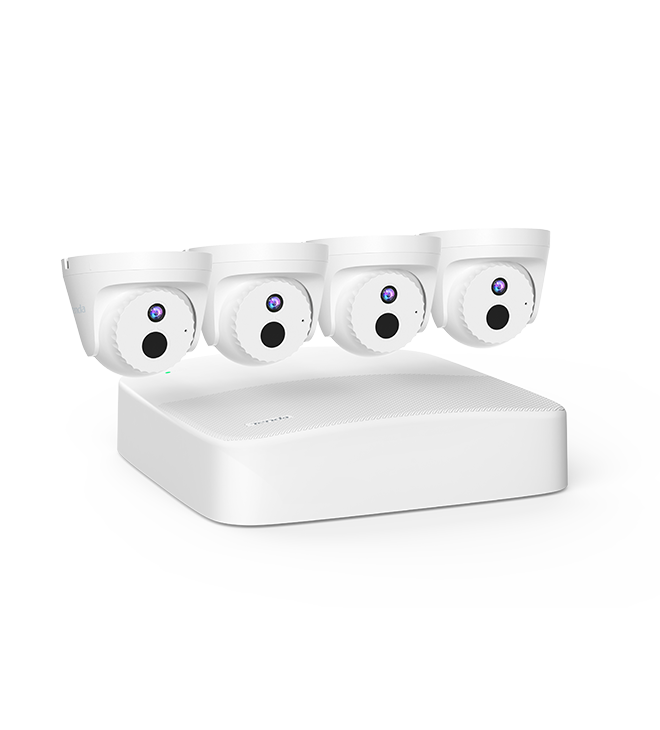

K4P-4CR 4 Channel PoE HD Video Security Kit
4 Channel PoE HD Video Security Kit K4P-4CR includes 1 PoE NVR and 4 PoE conch security cameras. It integrates such functions as plug and play, 4MP HD image quality, infrared night vision, AI human detection, H.265 high-performance video decoding, HDD bad sector isolation, channel cloud storage and App remote monitoring. It offers one-stop solutions for small video surveillance in such scenarios as single-family houses, shops, restaurants, offices, schools, factories and farms.
Compatible Official Standard Kit Hassle-free Purchase
The common accessories are included in the kit for building the small surveillance system. The official collocation is compatible and barrier-free, offering a convenient one-stop shopping experience.
Plug and Play with Stable Standard PoE Power Supply
IEEE802.3af standard PoE; Sifos testing; Power overload protection; Plug and play; Safe and stable internet connection and power supply
4MP HD Excellent Night Vision Experience
Equipped with 4MP high-performance CMOS image sensor, the resolution can reach 2560*1440. 30-meter infrared night vision enables you record with high-definition even in dark environment or a ultra-long distance.
Support 4K UHD Output for Clearer Horizons
4K HDMI output and the ultra high-definition 3840*2160 resolution provides you clear images with more details even when zoomed.
Smart Bad Sector Isolation, Designed for Monitoring
The file system is specially designed for video surveillance. It can automatically detect, identify and skip the bad sectors on the HDD, ensuring that the recording is complete without losing frames. It is safe, stable and reliable.
AI Human Detection for Accurate Alarm
Based on deep learning image identification technology, the built-in AI human detection function effectively filters non-human targets, thus greatly improving alarm accuracy.
Dual Backup with HDD and Cloud Storage
Safeguard Recording Against Loss
The video security kit supports 10TB large-capacity HDD access to meet the long-term recording storage requirements. With HDD and cloud storage, the data is safe and not lost.
Easy and Fast Remote Access
Control Monitoring Anytime Anywhere
The video security kit supports mobile App remote monitoring and browser access without plug-in. You can view and paly back the video, receive the alarm messages and control abnormal conditions on your mobile phone anytime and anywhere.
| Video&Audio Output | |
|---|---|
| HDMI Output | 1-ch, 4K (3840 × 2160 )/30Hz, 1920 × 1080/60 Hz, 1280 × 1024/60Hz, 1280 × 720/60 Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
| Output Bandwidth | 60 Mbps |
| Audio Output | 1-ch, RCA (2.0 Vp-p, 10kΩ) |
| Video&Audio Decoding | |
| Audio Decoding Format | G.711A, G.711U |
| Recording Resolution | 4MP, 3MP, 1080P, 720P, D1 |
| Decoding Capability | 4-ch@1080P (30 fps) |
| Stream Type | Video, Video & Audio |
| Video Decoding Format | H.265, H.264 |
| Recording Management | |
| Playback Mode | Instant, Channel, File, Tag |
| Sync Playback | Up to 4-ch |
| Backup Mode | USB device |
| Record Mode | Normal, Alarm |
| Network Managemant | |
| Ethernet Port | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
| Network Protocol | HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS |
| Mobile Client | Support iOS, Android |
| Web Browser | Plug-in free live view : Chrome, Edge, Opera, Safari |
| HDD Storage | |
| HDD Interface | 1 SATA 3.0 interface |
| Capacity | Up to 10 TB capacity for each HDD |
| External Interface | |
| USB Port | 2 x USB 2.0 |
| General | |
| Dimension | 200 mm × 200 mm × 48 mm |
| Power | 51 VDC, 1.25 A |
| Weight (Without HDD) | 510g (1.12lb) |
| Installation Method | Desktop mounting, wall mounting |
| Temperature | Operating temperature: 0°C - 40°C (32°F - 104°F) Storage temperature: -30°C - 70°C (-22°F - 158°F) |
| Humidity | Operating humidity: 10% - 90% RH (non-condensing) Storage humidity: 5% - 95% RH (non-condensing) |
| Certification | CCC, CE, FCC, RoHS,UKCA |
| Video&Audio Input | |
| IP Video Input | 4-ch |
| IP Video Resolution | 4MP |
| Input Bandwidth | 60 Mbps |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 10kΩ) |
| PoE | |
| PoE Port | 4 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports |
| PoE Standard | IEEE 802.3af |
| PoE Power | ≤40W |
| Camera | |
| Image Sensor | 1/3” CMOS sensor |
| Max. Resolution | 2560 x 1440 |
| Day and Night | Built-in IR-CUT Dual Filters |
| Digital Noise Reduction | 3D DNR |
| DWDR | Support |
| Backlight Compensation | Support |
| Fill Light | 1 IR Light |
| Infrared Fill Light Distance | Up to 30 meters (depending on environment) |
| Night Vision Mode | Infrared Mode |
| Lens Specifications | |
| Lens Type | 4 mm@F2.2 |
| FOV | Horizontal FOV: 74.9°, Vertical FOV: 41.3°, Diagonal FOV: 88.2° |
| Camera Video Specifications | |
| Video Encoding Format | H.265, H.264 |
| Main Stream | 25fps (2560 ×1440),30fps(2304 × 1296, 1920 × 1080) |
| Sub Stream | 25fps (640 × 360, 352 × 288, 320 × 240) |
| Camera Audio Specifications | |
| Audio Encoding Format | G.711A, G.711U |
| Audio Sampling Rate | 8 kHz |
| Camera Network Management | |
| Ethernet Port | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
| Smart Alarm | |
| Motion Detection | Support |
| Human Detection | Support |
| Video Tampering | Support |
| Camera External Interface | |
| Audio Input | Built-in microphone |
| Camera General | |
| Dimension | 106.8 mm x 90.5 mm |
| Weight | 174 g |
| Installation Method | Ceiling mounting, Wall mounting |
| Certification | CE, FCC, RoHS,UKCA |
| Kit | |
| Dimension | 385mm x 225mm x 305mm |
| Weight (With Package) | 4.32kg |
| Package Contents | PoE Network Video Recorder x 1, Power adapter (51V 1.25A) x 1, Screw kit (NVR) x 1, Mouse x 1, PoE Camera x 4, Screw kit (camera) x 4, Mounting template x 4, Screwdriver x 1, HDMI cable x 1, Surveillance sticker x 1, 1 m Ethernet cable x 1, 18 m Ethernet cable x 2, 30 m Ethernet cable x 2, User manual x 1, |
